Shanghai ENJUE Machinery Equipment Co., Ltd is one of the most experienced manufacturers and suppliers of 20ft semi-automatic spreaders in China. If you're going to buy custom 20ft semi-automatic spreaders made in China, welcome to get more information from our factory. For price consultation, contact us.

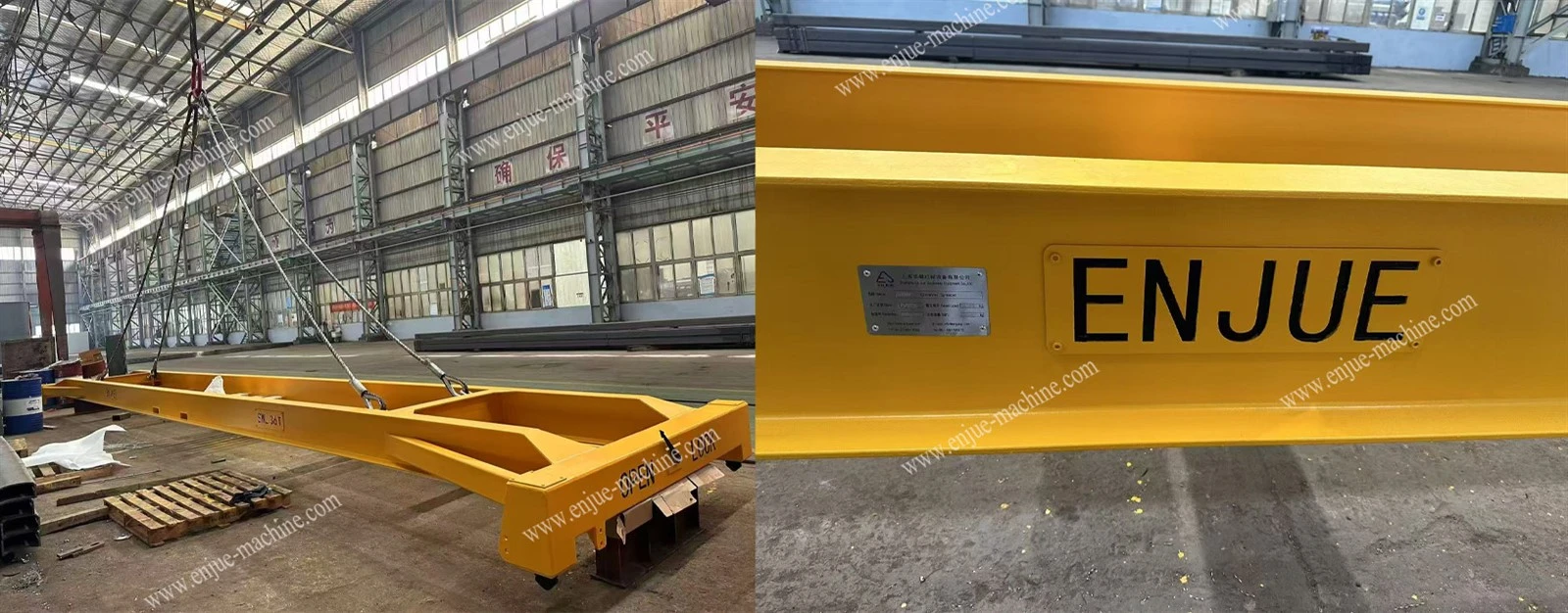

Enjue 20ft Semi-automatic Spreader: Precision Handling for Safe and Efficient Container Operations
Accurate Positioning and Secure Locking Mechanism
When it comes to handling containers with utmost precision and safety, the Enjue 20ft Semi-automatic Spreader stands out as a reliable and user-friendly solution. To initiate the container-lifting process, operators should carefully position the spreader atop the container, utilizing the strategically placed guidance plates. These three guidance plates are designed to make contact with the container's edges simultaneously, providing a clear indication that the spreader is correctly aligned. Once all three guidance plates are in contact, it ensures that the spreader is centered and ready for the next step.
Lowering the 20ft semi-automatic spreader gently onto the container activates the twistlock mechanism. As the spreader descends, the twistlocks automatically engage with the container's corner fittings, creating a secure connection. A prominent "locked" sign is then displayed, clearly visible to the crane driver, signaling that the container is now firmly attached and ready to be lifted. This visual confirmation is crucial for ensuring safe operations, as it eliminates any guesswork regarding the status of the connection.
Safety Considerations and Weight Limitations
It is imperative to adhere to strict safety guidelines when using the Enjue 20ft container Spreader. All four twistlocks must be fully locked before attempting to lift the container. This ensures an even distribution of the load and prevents any potential accidents due to uneven lifting. Additionally, operators must always verify that the container's weight does not exceed the Safe Working Load (SWL) of the spreader. Exceeding the SWL can compromise the integrity of the spreader and pose a significant safety risk.
The guidance plates are specifically designed for use with standard ISO containers. They are not suitable for extra-long or extra-wide containers, as these may not align properly with the plates, leading to inaccurate positioning and potential safety hazards. Therefore, it is essential to use the spreader only with containers that conform to the standard ISO dimensions.
Proper Lifting Wire Connection and Shifting Gear Setup
To prepare the semi-automatic spreader for lifting, operators must connect the lifting wires correctly. The 20ft semi-automatic spreader is equipped with two sets of two-leg lifting wires, which should be attached to the crane hook in a non-twisted manner. This ensures that the load is evenly distributed and prevents any unnecessary strain on the wires.
For 20ft semi-automatic operations, an additional wire with a main spring, part of the shifting gear system, must also be connected to the crane hook. This wire plays a crucial role in the unlocking process, as described below. Once all wires are properly connected, the spreader is ready to be lifted, and the container can be moved to its desired location.
Unlocking and Release Procedure
After the container has been placed in its designated position, the crane driver must carefully lower the crane hook to slacken the wire of the shifting gear. As the wire is lowered, the sheave within the shifting gear mechanism moves to its lowest possible position. This movement is essential for preparing the 20ft semi-automatic spreader for the unlocking process.
Once the sheave has reached its lowest position, the operator can then lift the wires again. This action triggers the unlocking mechanism, causing the twistlocks to disengage from the container's corner fittings. A clear "unlocked" sign is displayed to the crane driver, indicating that the container is now free and can be safely moved away from the semi-automatic spreader.
The Enjue Semi-automatic Spreader is a meticulously engineered solution for safe and efficient container handling. Its precise positioning system, secure locking mechanism, and user-friendly unlocking procedure make it an ideal choice for ports, terminals, and logistics centers worldwide. By adhering to the safety guidelines and following the proper operating procedures, operators can ensure smooth and accident-free container operations, enhancing productivity and minimizing downtime. Invest in the Enjue Container Spreader today and experience the difference in precision, safety, and efficiency.
