Enjue 20FT/40FT container tilters are specialized equipment designed for container transport vehicles, aimed at achieving safe, efficient container tipping and loading/unloading operations. Through a unique openable/closable base design, coupled with a hydraulic control system, this equipment can easily lock, tip, and position containers. It is suitable for bulk material loading and unloading needs in large enterprises, grain depots, docks, railway stations, freight yards, and other scenarios, making it an ideal choice for improving operational efficiency.
Core Equipment Advantages of Enjue 20ft/40ft container tilter:
Safe and Reliable: Fully hydraulic-driven, low noise, low vibration, and smooth operation; equipped with multiple safety protection devices to ensure operational safety.
Highly Efficient Operation: Tilting angle 0-90°, it can allow loading and unloading at 0-90°, with short lifting/lowering time.
Flexible Control: Supports motor drive (optional remote control ≤100m) or manual multi-way valve control to meet different operating habits.
High Adaptability: The base can move horizontally, and the opening is adjustable (maximum 3500mm), compatible with various container sizes; supports installation on hardened ground or heavy-duty industrial casters.
Product Functions and Operating Procedures
Vehicle Entry and Secure Locking
Base Opening and Closing Mechanism
The base is equipped with dual hydraulic cylinders on either side, enabling seamless and controlled opening and closing. With a maximum opening width of 3,500mm, this design ensures effortless entry for transport vehicles, accommodating a wide range of container sizes and vehicle types.

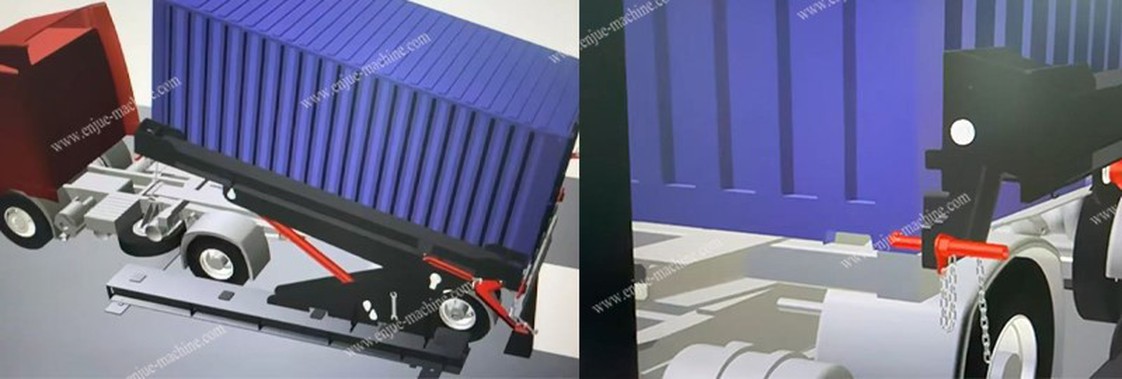

Precise Positioning and Container Locking
Once the vehicle is positioned inside the container tilter, the base closure is finely adjusted to match the container's exact location. This ensures a secure, immovable lock, preventing any displacement or slippage during the tilting process and guaranteeing safe, stable operation.
Container Tilting and Precision Positioning

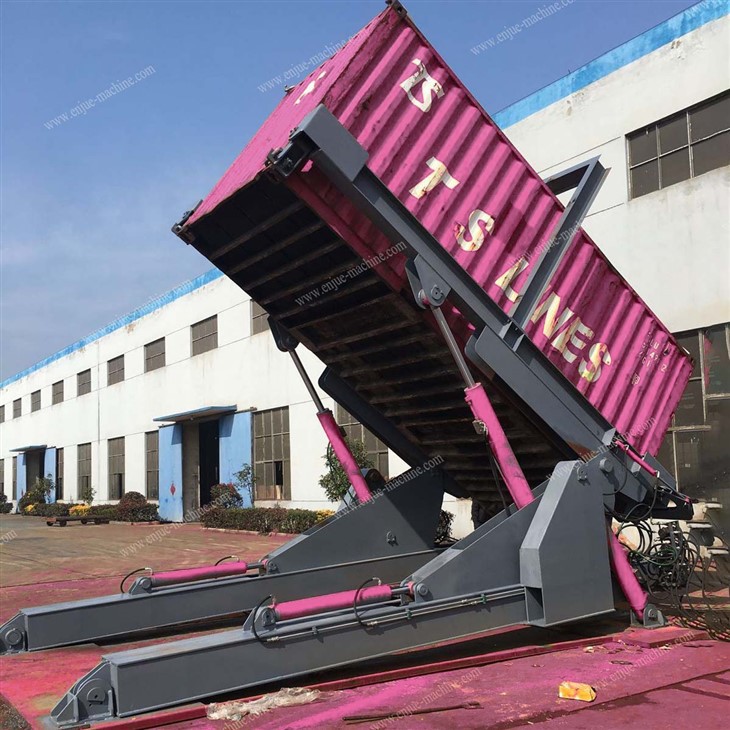

Full 90° Tilting Functionality
After the container is securely locked, the tilting mechanism of the Enjue 20ft/40ft container tilter rotates it smoothly to a vertical 90° position. This facilitates efficient, gravity-assisted unloading of bulk materials, minimizing manual effort and optimizing workflow.
The container's discharge opening is precisely aligned with the target loading area using dual telescopic hydraulic cylinders. This automated adjustment ensures accurate positioning, eliminating material spillage and enhancing operational cleanliness and efficiency.
Power and Control
Power System: Driven by a Y180M-4-B35/18.5kW motor, providing power and low energy consumption.
Control Methods:
Electric Control: Standard motor drive, supports remote operation (optional ≤100m).
Manual Control: Multi-way valve manual control can be configured according to customer needs, flexibly adapting to different scenarios.
| No. | Item | Unit | Detailed Data |
|---|---|---|---|
| 1 | External dimensions (length × width × height) | mm | 8550×10088×2430 |
| 2 | Weight of the container tilter | T | 15 |
| 3 | Working hours of the day | h | 20 |
| 4 | Rated lifting capacity(SWL) | T | 45 |
| 5 | Maximum lifting capacity(Max. SWL) | T | 55 |
| 6 | Tilting angle | ° | 0-90 |
| 7 | Lifting time | min | 1.06 |
| 8 | Falling time | min | 0.55 |
| Motor Specifications | |||
| 1 | Motor model | - | Y180M-4-B35 |
| 2 | Motor power | kW | 18.5 |
Design and Manufacturing Standards
The Enjue 20ft/40ft container tilter is designed and manufactured in strict accordance with the latest international and domestic standards to ensure that product quality and safety reach industry-leading levels. Key standards include:
Structural Design: GB50017-2003 "Code for Design of Steel Structures"
Construction Quality: GB50205-2001 "Code for Acceptance of Construction Quality of Steel Structures"
Welding Quality: JQ/NG-2-2-93 "Standard for Inspection of Weld Quality"
Painting Standard: JQ/NG-28-1-92 "General Process Specification for Painting of Welded Structural Components"
Safety Inspection: GB11345 "Methods for Manual Ultrasonic Testing of Steel Welds and Classification of Testing Results"
International Certifications: ISO9001 Quality Management System Certification, IEC International Electrotechnical Commission Standards
Material Standards: GB700-88, GB1591-88, GB3077-88, GB699-88
Installation and Usage Environment Requirements

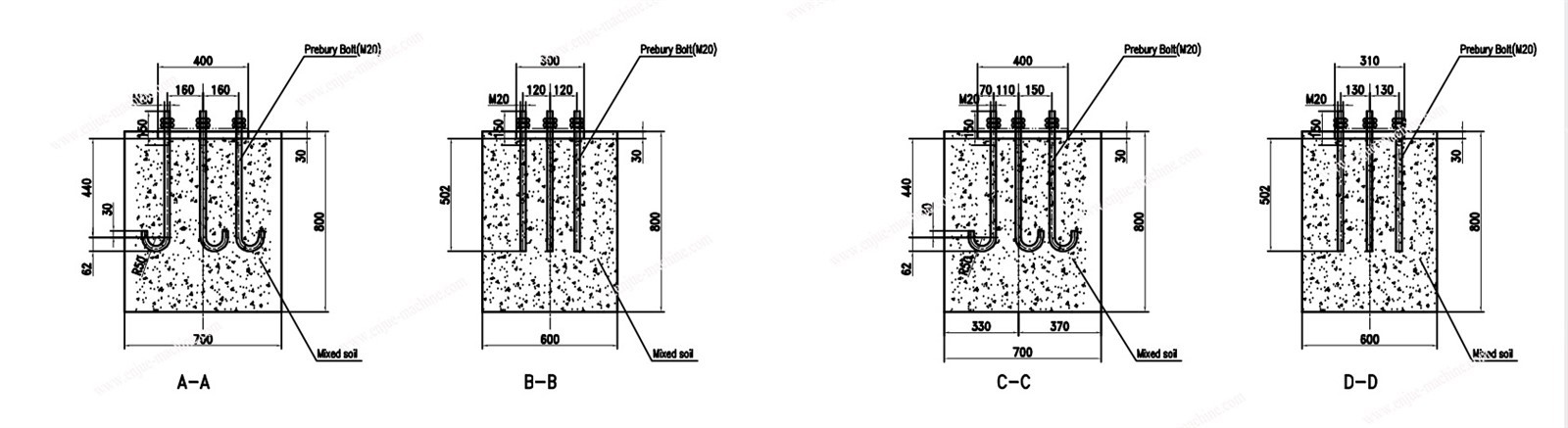

Foundation Requirements
Rail Laying: Crane rails must be laid under the container loader's frame to ensure operational stability.
Cascade Installation: If heavy-duty industrial casters are selected, the following conditions must be met:
The ground must be flat and hardened (optimized 21-23cm thick reinforced concrete);
The ground must be free of potholes and have a load-bearing capacity that meets the equipment requirements.
