Given the increasingly stringent global environmental regulations, it is entirely reasonable and professional for customers to be concerned about the environmental performance of mobile bagging machines. In fact, modern containerized mobile bagging machine systems can not only be environmentally friendly but also serve as a benchmark for "green solutions" in dust-sensitive operating environments.
The key lies in the configuration and integration of the dust removal system, which directly determines whether the equipment meets environmental standards.
Each of our containerized mobile bagging machine systems comes equipped with a high-efficiency dust removal system (standard or optional). The technical specifications are as follows:
Dust Removal System Operating Principle
Our dust removal system of the containerized mobile bagging machine utilizes multi-stage filtration combined with negative-pressure suction technology.
Suction inlets are strategically positioned at key points prone to dust emission, such as the bagging spout, material discharge chute, and weighing hopper. A fan generates negative pressure to draw dust-laden air into the ductwork; the air passes through a primary settling chamber and a high-efficiency filter element (with a filtration precision of 0.3–5 microns). Clean air is then exhausted, while collected dust is recovered in a dedicated dust bin to prevent secondary pollution.
Environmental Performance Indicators
Dust emission concentration: Controlled at ≤ 10 mg/Nm³ (surpassing domestic and most international environmental standards).
Noise control: The dust removal system employs low-noise fans and sound-insulating enclosures to ensure operating noise levels remain ≤ 75 dB(A).
Energy efficiency optimization: The dust removal system of the mobile containerized bagging machine is interlocked with the main bagging unit, operating automatically only during bagging tasks to eliminate unnecessary energy consumption.
Environmental Advantages of the ENJUE Containerized Mobile Bagging Machine Design
Compared to stationary bagging stations, dust-proof containerized mobile bagging machine systems offer the following additional environmental benefits:
Reduction in material handling steps: They can be moved directly to the vicinity of material piles or silos for operation, minimizing the need for repeated material transfers and curbing dust generation at the source.
Flexible relocation and reduced site paving: They do not require extensive concrete foundations, thereby mitigating the ecological impact associated with soil sealing.
Rapid deployment and removal: The entire unit can be relocated upon project completion, leaving behind no construction waste.
Dust Control - Achieving a Clean Operating Environment
The dust control system of the mobile containerized bagging machine incorporates negative-pressure dust suppression technology. An integrated dust removal unit-comprising a high-performance vacuum fan and high-efficiency filter bags-creates a continuous negative-pressure zone at critical dust emission points, such as the bagging inlet, weighing hopper, and material discharge locations. Dust-laden air is forcibly drawn into the filtration system; the dust is captured by the filter bags while clean air is exhausted, and the collected dust is deposited into a dedicated bin for centralized disposal. This design effectively eliminates fugitive dust emissions during the bagging process, ensures that air quality in the work area meets environmental and occupational health standards, and simultaneously reduces material loss.
Mobile Convenience - One Unit, Multi-Point Operation

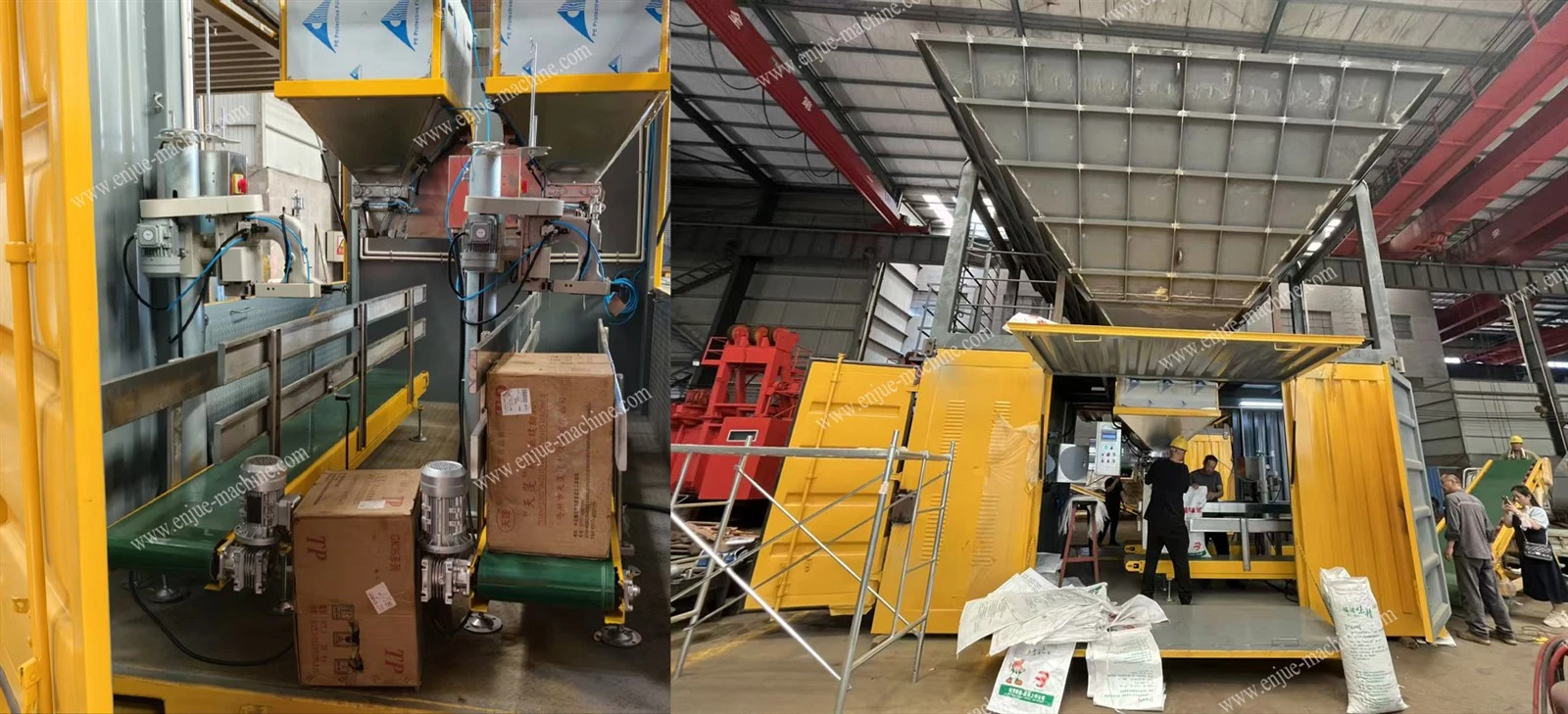

The mobile containerized bagging machine utilizes a wheeled chassis or frame-mounted casters as its standard support structure; some models can even be integrated into standard shipping containers, enabling true "tow-and-go" mobility and immediate on-site operation. Whether rotating between multiple silos or relocating across different plant areas or project sites, the unit can be rapidly moved using a forklift, trailer, or crane. This eliminates the need for complex disassembly and reassembly or the construction of dedicated fixed bagging stations at every location, thereby significantly reducing equipment investment and infrastructure costs.
Automatic Weighing, Filling, and Packaging - High Efficiency Meets High Accuracy
This mobile containerized bagging machine integrates weighing, automatic filling, and automatic packaging into one seamless process. The material is accurately weighed inside a closed pipeline (weighing accuracy can reach ±0.2% to ±1%, depending on the material), then immediately dispensed into bags and sealed/heat-sealed, all without manual intervention. While ensuring filling efficiency, the material flows in a controlled environment, so dust doesn't easily spread, keeping the work area clean. Operators only need to handle simple startup settings and stack the finished products, significantly reducing labor intensity and improving work safety.
