Shanghai ENJUE Machinery Equipment Co., Ltd is one of the most experienced manufacturers and suppliers of recovery winches in China. If you're going to buy custom recovery winches made in China, welcome to get more information from our factory. For price consultation, contact us.

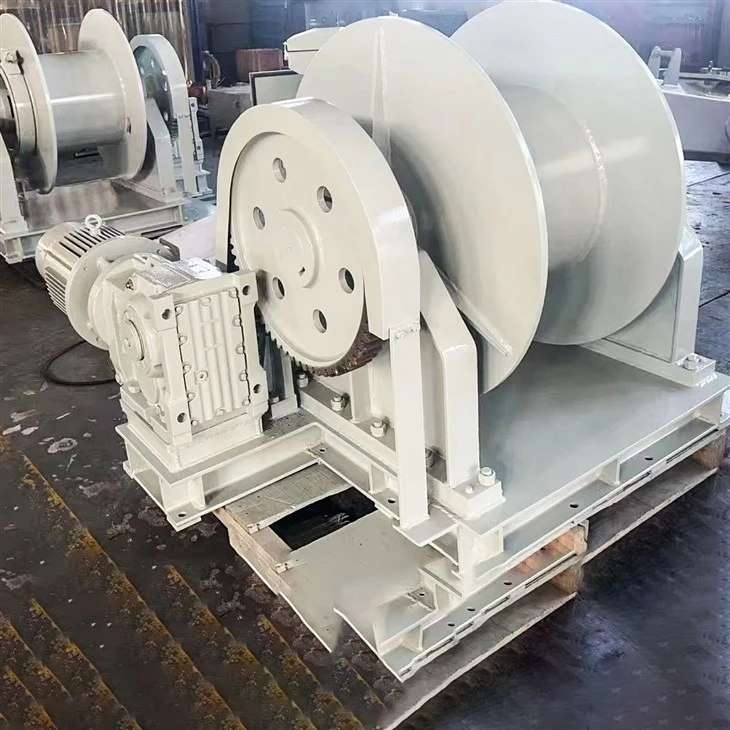

The Recovery Winch is a heavy-duty, multi-functional rescue tool engineered for vehicle extraction, industrial recovery, and emergency response operations. Unlike conventional winches, this model integrates military-grade durability, adaptive power systems, and intelligent safety protocols to dominate the most challenging terrains and scenarios. Its modular design supports rapid reconfiguration for land, marine, or aerial applications.
Technical Specifications of the recovery winch
| Parameter | Details |
|---|---|
| Rated Pull Capacity | 4,500–35,000 lbs (2,041–15,876 kg) with dynamic brake holding >120% load |
| Motor Type | Permanent Magnet AC (PMAC) with 94% energy efficiency |
| Gear Train | 3-stage planetary with 95:1 reduction ratio (silent operation <68 dB) |
| Rope Capacity | 100 ft (30.5m) synthetic Dyneema® rope (30% lighter than steel) |
| Control System | Dual-mode: Wireless handheld RF remote + wired pendant (IP69K rating) |
| Mounting Options | Universal 4-bolt pattern (compatible with 95% of recovery vehicles) |
| Weight | 68 lbs (30.8 kg) – 185 lbs (83.9 kg) [model-dependent] |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) with self-heating batteries |
Operational Advantages of the recovery winch
Speed Control:
Variable frequency drive (VFD) enables 0–35 ft/min (0–10.7 m/min) pulling speed.
"Creep Mode" for precision placement of loads.
Thermal Management:
Liquid-cooled motor housing maintains performance in 100% duty cycles.
Automatic shutdown at 212°F (100°C) with audible alerts.
Corrosion Resistance:
Electropolished 316 stainless steel fasteners and hardware.
Zinc-nickel plating on all steel components (1,000-hour salt spray resistance).
Customization Options
Arctic Package:
Low-temperature grease and heated controls (-67°F/-55°C operation).
Insulated rope drum cover.
Marine Kit:
Anodized aluminum fairlead with ceramic bearing inserts.
Submersible solenoid housing (IP68 rating).
Explosion-Proof (EX) Version:
Stainless steel clutch housing with non-sparking bronze bushings.
Environmental Compliance
Eco-Design:
92% recyclable by weight.
Biodegradable synthetic rope option.
Emissions Control:
Solar-rechargeable battery reduces diesel generator runtime by 60%.
Low-noise operation (68 dB at 1m) for wildlife-sensitive areas.
