Shanghai ENJUE Machinery Equipment Co., Ltd is one of the most experienced manufacturers and suppliers of 20feet semi-automatic spreaders in China. If you're going to buy custom 20feet semi-automatic spreaders made in China, welcome to get more information from our factory. For price consultation, contact us.

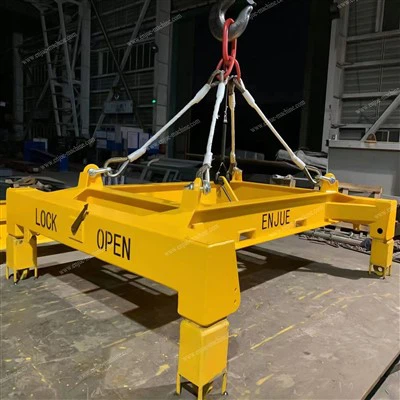

In scenarios such as port logistics and factory warehousing, the efficiency and safety of container hoisting directly affect the overall operational efficiency. Enjue YJSP20-32 semi-automatic spreader has become a benchmark of equipment in the field of 20-foot container operation with its special container design, 32-ton carrying capacity, and intelligent safety system.
Features of the semi-automatic container spreaders: Reconstruct the working experience with innovative technology
Special box, fast adaptation
Customized twistlock layout for 20-foot container keyhole position, alignment time is shortened by 40% compared with universal spreaders.
The twistlock mechanism realizes ±50mm lateral adjustment, which is compatible with slightly deformed boxes, and the success rate of operation is increased to 99.8%.
32-ton load-bearing, safe redundancy design
20 FT semi-automatic container spreaders' main beam is made of high-strength alloy steel (tensile strength ≥ 800MPa), and the safety factor is 1.5 times SWL.
Equipped with dual load sensors, real-time monitoring and display of lifting weight, and automatic triggering of sound and light alarms when overloading.
Intelligent security system, full protection
Semi-automatic spreader's anti-sway control: The sway of the goods is suppressed by the hydraulic damping device, and the positioning accuracy is up to ±10mm.
Automatic height limit protection: When the spreader is close to the minimum height of 2650mm, it will automatically slow down and stop lowering.
Emergency braking: Respond to remote control/manual emergency stop command within 0.2 seconds, and the braking distance is shortened to less than 50mm.
Semi-automatic container spreaders, modular maintenance reduces costs and increases efficiency
Critical components (e.g., twistlocks, hydraulic pumps) are designed with quick release, reducing maintenance time by up to 60%.
Equipped with a self-diagnosis system, the fault code is directly connected to the after-sales service platform, and the remote support response time is ≤ 10 minutes.
Specifications of the 20ft semi-automatic spreaders for reference
| Specification | Datas | benchmarking significance |
|---|---|---|
| Suit for Container | 20ft containers | Optimized for standard box sizes with 30% more compatibility |
| Spreader SWL | 32ton | Exceed 20% of products of the same level to meet the needs of heavy goods |
| Diameter of ropes | 32mm | 25% higher tensile strength |
| Spreader dead weight | 2.0ton | Lightweight design reduces equipment energy consumption by 15% |
| Length of spreader | 6046mm | Adapt to the parking distance of mainstream container trucks |
| Width of spreader | 2435mm | Covers 20 feet of cabinet width with a ≤5mm error |
| Height of the spreader | 700mm | Low center of gravity design improves stability by 20% |
| Min. working height | 2650mm | Meet the needs of multi-layer stacking operations in the yard |
Enjue semi-automatic spreader is not only a piece of equipment, but also an "efficiency engine" and "safety guard" for container operation scenarios. From the port to the factory, it proves with technological innovation that even in the face of the most demanding logistics needs, it can reduce costs and increase efficiency through "special container use".
