The ENJUE 20-foot mobile container tilter is a bulk cargo loading and unloading unit specifically designed for standard ISO 20-foot containers. Utilizing a hydraulic drive system, it smoothly tilts the container from a horizontal position to a0- 90-degree vertical orientation, fundamentally transforming traditional manual or mechanical loading and unloading methods. Additionally, the unit can be customized with a mobile mechanism to facilitate convenient operation at various locations in the factory.
This 20'container tilter with movable system for loading main technical specifications
| No. | Parameter | Specification | Remarks |
|---|---|---|---|
| 1 | Rated Load Capacity | 35 t | Includes 20ft container + cargo total weight |
| 2 | Applicable Container Type | ISO 20ft Standard Container | Complies with ISO 1161 / ISO 12000 |
| 3 | Total Power | 30 kW | Main motor driving hydraulic system |
| 4 | Hydraulic System Working Pressure | 22 MPa | System rated operating pressure |
| 5 | Tilting Angle Range | 0° ~ 90° | Horizontal to vertical tilting |
| 6 | Single Tilting Cycle Time | < 80 s | Full stroke from 0° to 90° at full load |
| 7 | Hydraulic Cylinder Specification | Piston dia. φ160 mm / Piston rod dia. φ90 mm | Four hydraulic cylinders in synchronous operation |
| 8 | Weighing Sensors | 4 units, digital display | Max. measuring range: 80 t |
| 9 | Control Voltage | DC 24 V / AC 220 V | Safety voltage for control circuits |
| 10 | Motor Protection Class | IP 55 | Dust-tight and protected against water jets, suitable for outdoor use |
| 11 | Ambient Operating Temperature | -40 ℃ ~ +40 ℃ | Suitable for extreme cold and high-temperature conditions |
| 12 | Wind Resistance Rating | 25 m/s | Equivalent to Beaufort Force 10 |
| 13 | Control Modes | Manual joystick / Wireless remote control | Dual-mode redundant control system |
| 14 | Dead Weight (Self-weight) | ~9.5 t | Excluding hydraulic oil and auxiliary materials |
| 15 | Power Supply | 380 V / 50 Hz | Three-phase industrial power supply |
| 16 | Auxiliary Motor (Turbo) | 3 kW | For auxiliary systems (e.g., cooling/heat dissipation) |
Detailed Container Tilter's Steel Structure for Reference
The ENJUE 20-foot mobile container tilter features a main body constructed from high-strength structural steel and is equipped with a hydraulic power system from a renowned international brand. It supports tilting 20-foot standard containers to any angle between 0° and 90°. Additionally, the container tilter is fitted with tires, a weighing system and a wireless remote control system, allowing operators to manage the entire container loading and tilting process from a safe distance, without needing to approach high-risk work zones.
Our 20 ' mobile container tilter unloaded testing

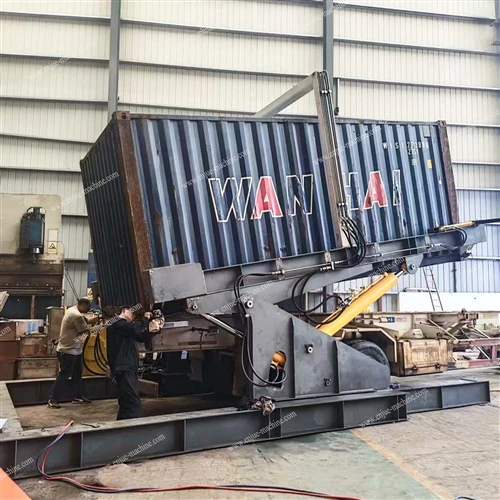

The Container Tilter With 20 Feet container and Truck Testing
ENJUE 20-Foot Mobile Container Tilter: Analysis of Customer ROI and Value
Direct Economic Benefit: Significant Reduction in Loading and Unloading Costs
Traditionally, loading and unloading bulk cargo from containers requires a team of 4–6 workers using manual shoveling or small loaders, taking an average of 1.5 to 2 hours per 20-foot container. In contrast, the ENJUE container tipper utilizes a 90-degree vertical tilt to discharge cargo via gravity; the entire process can be completed by a single operator using remote control, drastically reducing the time required for each container.
With improvements in loading and operational efficiency, and the ENJUE mobile container tipper, the unit is equipped with a self-propelled or towable chassis, allowing for flexible deployment across various work sites without the need for permanent infrastructure. A single unit can service multiple loading and unloading bays, eliminating the redundant investment associated with traditional fixed tippers that are tied to a single location. This feature is particularly valuable for small and medium-sized logistics enterprises in New Zealand facing space constraints, as it enables a doubling of operational capacity without the need for site expansion.
Safety and Compliance Value: Reducing Risk-Related Costs
Remote Operation: Operators can perform tasks from a safe distance of 150 meters.
Hydraulic Self-Locking Function: Built-in explosion-proof and load-holding valves lock the position even if a hydraulic line ruptures, preventing "cylinder drift" accidents.
Overload Protection: Equipped with a weighing system featuring real-time load monitoring sensors; automatic alarms trigger upon overloading to prevent exceeding capacity.
The value the ENJUE 20-foot mobile container tilter delivers to customers extends far beyond a mere boost in efficiency; it represents a multifaceted value proposition encompassing tangible cost savings, the mitigation of hidden risks, long-term asset returns, and enhanced brand market premiums. In markets characterized by high labor costs and stringent safety regulations-such as New Zealand-the equipment offers exceptional return on investment, serving as a reliable pathway toward intelligent and lean loading and unloading operations.
Furthermore, following the delivery of the container tilters, we can arrange for a dedicated technical engineer to travel to New Zealand to carry out on-site installation and commissioning, while simultaneously providing the client with full-lifecycle remote installation guidance and spare parts support.
Deep Global Roots, Localized Service
The successful delivery of this order to New Zealand marks another significant breakthrough for ENJUE in the Oceania market, following its successful operations in Europe, Southeast Asia, and beyond. As a professional manufacturer specializing in material handling solutions, ENJUE is dedicated to creating value for global ports, industrial and mining enterprises, and logistics hubs through technological innovation and customized services. Upon arrival in New Zealand, the container tilter will immediately be put into service at a local facility, injecting new momentum into the efficient operation of its supply chain.
