Shanghai ENJUE Machinery Equipment Co., Ltd is one of the most experienced manufacturers and suppliers of 20‘container unloader in China. If you're going to buy custom 20‘container unloader made in China, welcome to get more information from our factory. For price consultation, contact us.

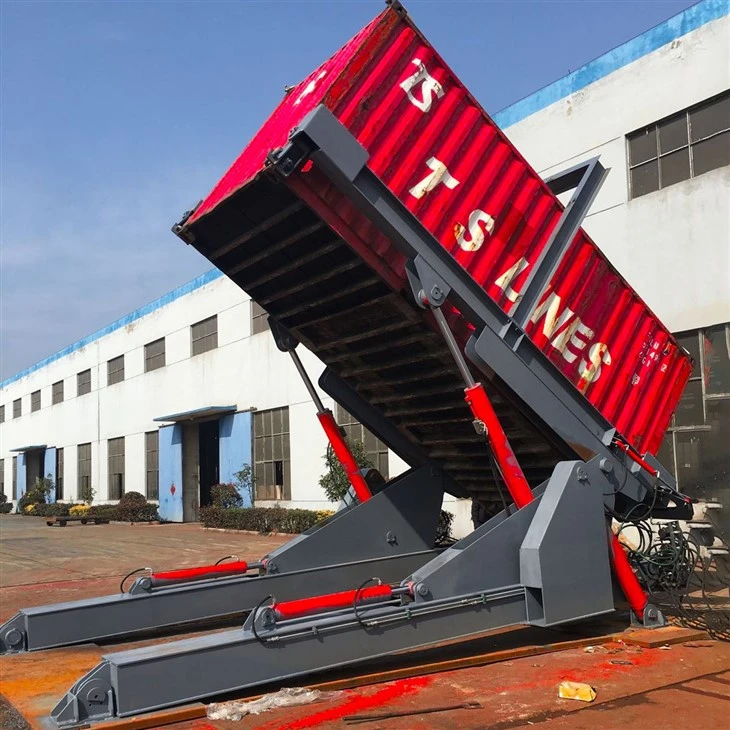

The Enjue 20' container unloader is specifically designed for standard ISO 20-foot containers and is primarily utilized for the rapid loading and unloading of bulk materials. Featuring a fully hydraulic drive system, the equipment is characterized by low noise, minimal vibration, and smooth operation, making it widely applicable in grain storage facilities, ports, railway stations, freight yards, and large-scale industrial enterprises. With its compact design, safe operation, and high efficiency, it is an ideal solution for modern bulk cargo handling operations.
Key Features and Advantages of the Container Tilters
Significantly Improved Unloading Efficiency: Each unloading cycle takes no more than 5 minutes-a 3-to-5-fold reduction in time compared to traditional methods.
Reduced Labor Costs: Features a high degree of automation, minimizing manual intervention and lowering physical labor intensity.
Flexible Operation Modes: Supports full hydraulic control, with optional configurations for remote control (effective range up to 100 meters) or manual multi-way valve control.
Stable and Safe Tilting: The 20'container unloader, equipped with hydraulic cylinders featuring large 160 mm piston diameters, delivering powerful lifting force, ensures a vibration-free tilting process and supports 90-degree vertical loading.
High Adaptability: Suitable for use in facilities equipped with crane rails; alternatively, can be fitted with heavy-duty industrial casters for use on hardened ground surfaces (reinforced concrete of 21–23 cm thickness is recommended).
Superior Structural Design: Features a low center of gravity and a highly stable structure; the hydraulic cylinders of the container tilters are positioned away from the discharge port to minimize material abrasion, thereby extending the equipment's service life.
Technical Specification Table (20' container unloaders Type)
| Item | Specs |
|---|---|
| Applicable container | ISO 20-foot |
| Control voltage | DC24V & AC220V |
| Motor power | 380W |
| Rated tilting load | According to ISO standards |
| Protection Level | IP55 |
| Tilting angle range | 0-70° |
| Cylinder extension time | <60s |
| Idle time | <60s |
| System pressure | 22MPa |
| Operating Voltage/Frequency | AC380V/3P/50Hz |
| Displacement | 58ml/r |
| Hydraulic cylinder specifications | Piston diameter 160 mm |
| Applicable wind speed | According to the ISO conditions |
| Control method | Hydraulic control / optional remote control |
Low center of gravity design: The 20'container unloader has strong stability, no shaking during the tipping process, supports 90° upright filling, high efficiency, and low energy consumption.
High loading and unloading efficiency: Fast material loading speed, short cycle time per operation, significantly improving work pace.
Convenient and safe operation: Optional remote control allows operators to stay away from hazardous areas, enhancing safety.
Strong durability: The cylinder layout is away from the discharge port, reducing the direct impact of dust and materials on the hydraulic system.
Suitable for various scenarios: Can be fixedly installed on rails or used as a mobile unit, adapting to different site conditions.
