Shanghai ENJUE Machinery Equipment Co., Ltd is one of the most experienced manufacturers and suppliers of over height container spreader in China. If you're going to buy custom over height container spreader made in China, welcome to get more information from our factory. For price consultation, contact us.

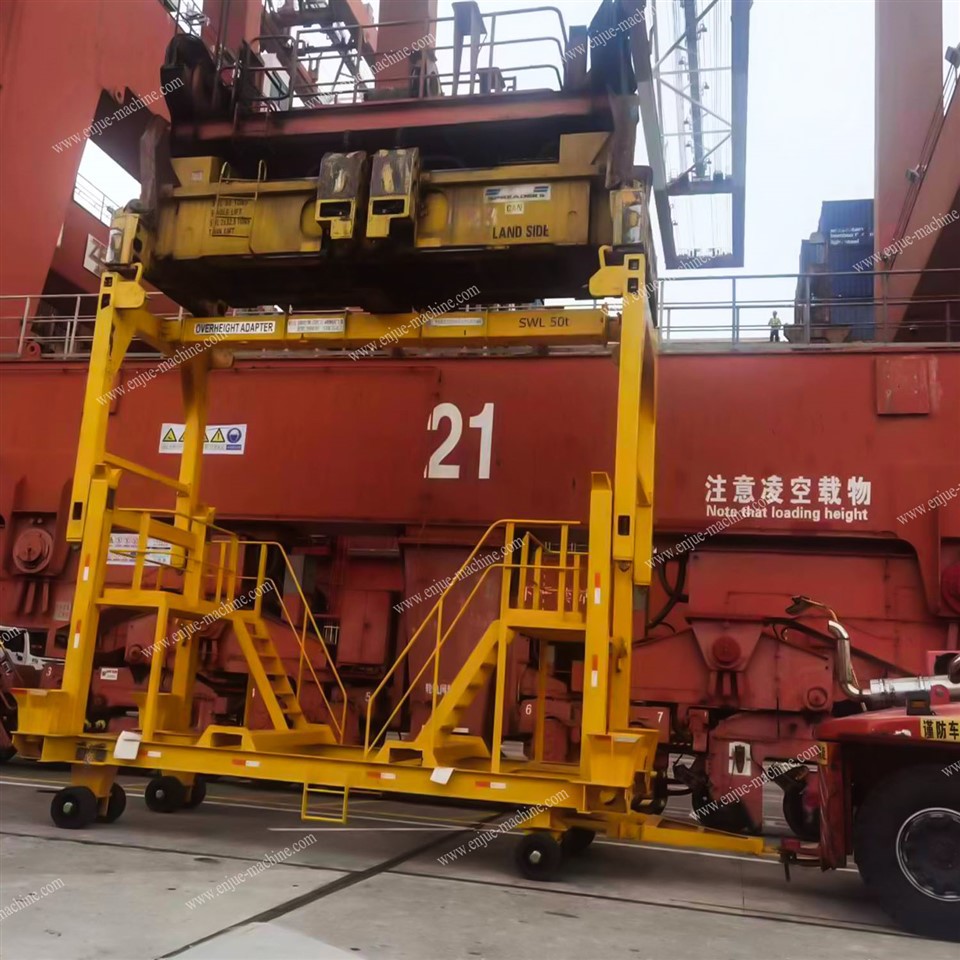

The Enjue over height container spreader is ingeniously designed with winglets that serve a crucial function in optimizing the positioning of the top spreader on the overheight spreader. These winglets effectively create a larger surface area, providing the top spreader with more reference points and a greater margin for error when finding the correct position. This innovative feature ensures that the spreader can be accurately aligned, even in challenging operational conditions, thereby enhancing overall efficiency and reducing the time required for setup and adjustment.
Double Landing Pin Set-Up: Ensuring Safe and Secure Operations
Safety is of paramount importance in container handling operations, and the Enjue over-height container spreader incorporates a robust double landing pin set up to guarantee secure locking and unlocking mechanisms. Each twistlock on the spreader is equipped with two landing pins, resulting in a total of eight landing pins. For the crane driver to initiate the locking or unlocking of the overheight spreader twistlocks and hoist the equipment, all eight landing pins must be activated simultaneously. This stringent requirement acts as a failsafe mechanism, preventing accidental release or movement of the spreader during critical operations, thus safeguarding both personnel and cargo.
Redundant Energy System: Uninterrupted Power Supply
In today's fast-paced and demanding container handling environments, a reliable power supply is essential for the smooth operation of equipment. The Enjue over height container spreader features a redundant energy system that ensures continuous power availability, even in the face of component failures. The spreader is equipped with multiple solar panels that work in tandem to generate energy and charge the batteries. In the event that one solar panel is damaged, the remaining panels will continue to produce sufficient energy to keep the batteries charged, ensuring uninterrupted operation. Similarly, if one of the batteries is compromised, the other batteries will seamlessly take over the task of delivering energy to the control system and motor drives, providing a reliable backup power source that minimizes downtime and enhances operational efficiency.
The legs of the over height container spreader are subjected to significant stress and strain during operation, and to protect them from damage and enhance their structural integrity, a linking beam is mounted between the legs. This linking beam serves as a crucial support structure, distributing the load evenly across the legs and preventing excessive bending or deformation. The linking beams can be connected using either bolts or quick release pins, providing flexibility in installation and maintenance. The choice of connection method depends on the specific operational requirements and preferences of the user, ensuring that the spreader can be adapted to suit a wide range of applications.
Information Display: Real-Time Operational Insights
To empower operators with real-time information and facilitate informed decision-making, the Enjue over height container spreader is fitted with a comprehensive information display located on the inside of the legs. This user-friendly display provides a wealth of critical data, including battery status, twistlock operation count, operation time, and oil pressure. By having access to this information at a glance, operators can monitor the performance of the spreader, identify potential issues early on, and take proactive measures to ensure optimal operation. This feature not only enhances operational efficiency but also contributes to the overall safety and longevity of the equipment.
Charging Light: Visual Indication of Battery Charging Status
To provide operators with a clear visual indication of the battery charging status, the Enjue over-height container spreader is equipped with a blue beacon light on the E-box. This light blinks every 5 seconds while the batteries are being charged via the power socket on the leg. This simple yet effective feature allows operators to quickly and easily determine whether the batteries are in the process of charging, eliminating the need for manual checks or guesswork. By providing real-time feedback on the battery charging status, this feature helps to ensure that the spreader is always ready for operation when needed, minimizing downtime and enhancing productivity.
Overall Dimensions of Over-height Container Spreadr
| Item | 20' | 40' |
| Distance between lock centers(length) | ≈ 5853 mm | ≈11985 mm |
| Distance between lock centers(width) | ≈ 2260 mm | ≈2260 mm |
| Overall Length | ≈ 6058 mm | ≈12188 mm |
| Overall Width | ≈ 2610 mm | ≈2610 mm |
| Frame Height | ≈ 636 mm | ≈731 mm |
Removable Linking Beam: Flexibility for Handling Protruding Loads
To accommodate the handling of protruding loads, the Enjue over-height container spreader offers an optional removable linking beam. This innovative feature allows the link beam, which is used to stiffen the OHS leg, to be fitted with a quick-link system for easy removal. When handling loads that extend beyond the normal dimensions of the spreader, the linking beam can be quickly and easily removed, providing the necessary clearance and flexibility. This option enhances the versatility of the spreader, enabling it to handle a wider range of cargo types and sizes, thereby increasing its utility and value in various container handling applications.
